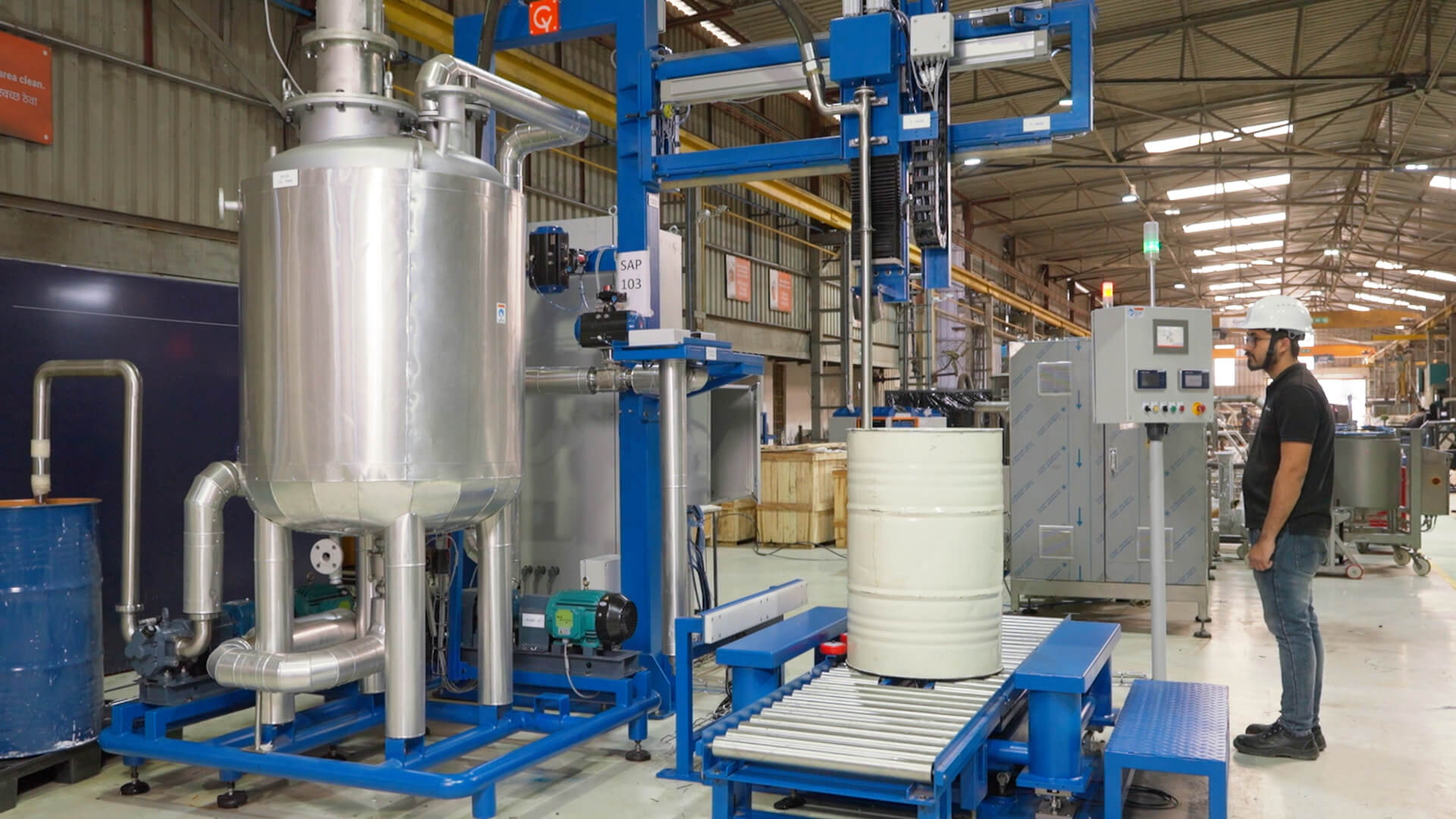

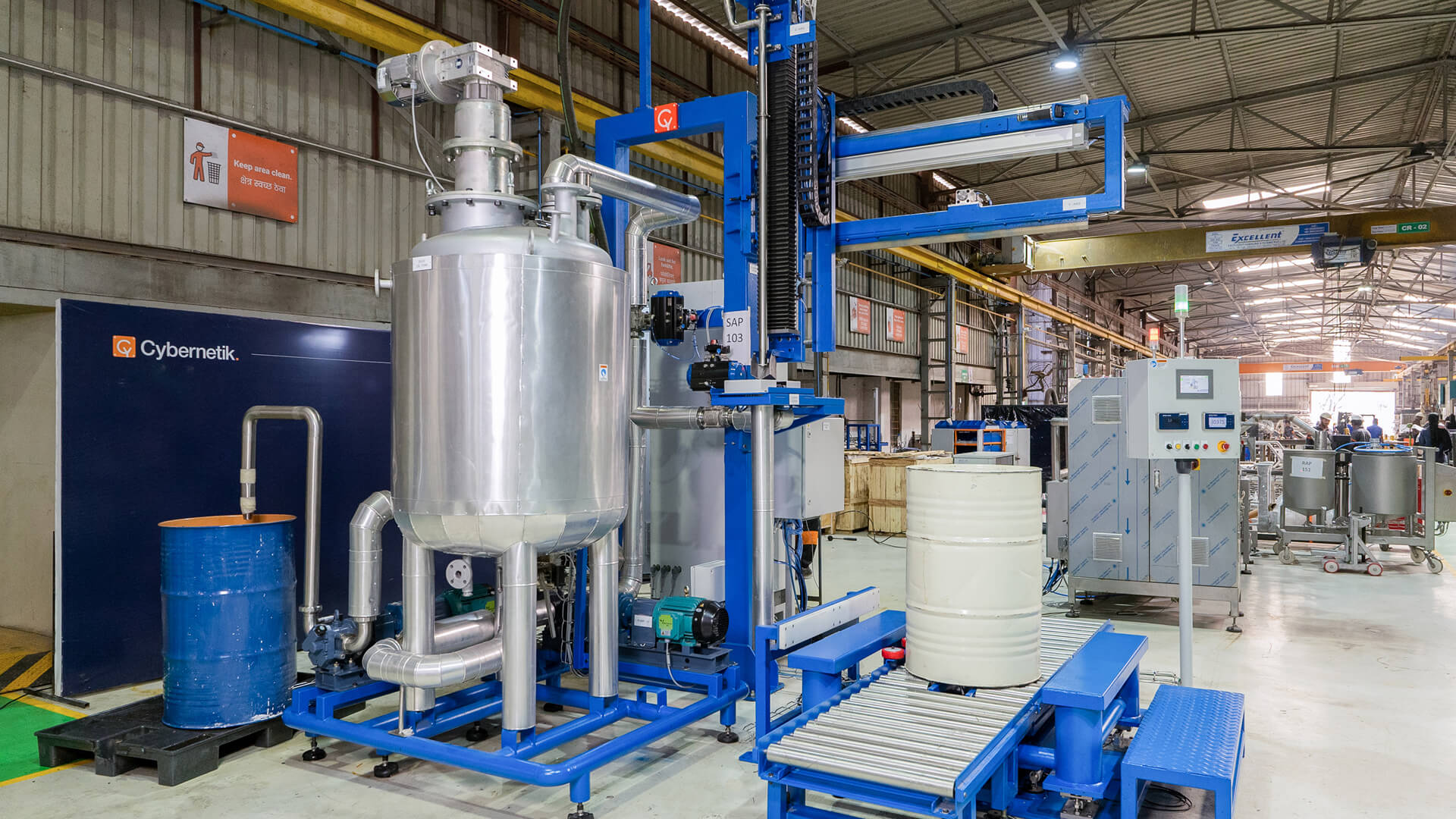

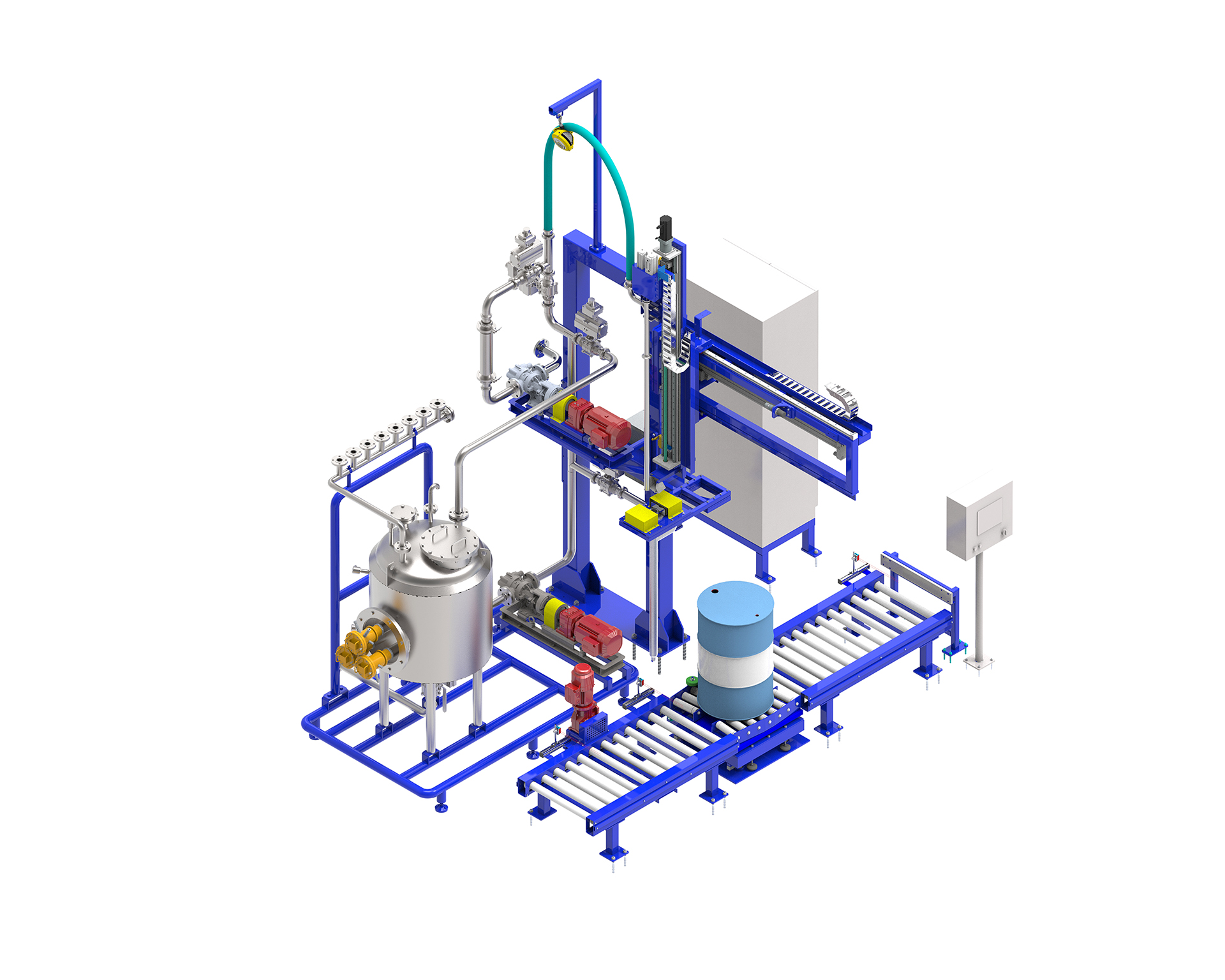

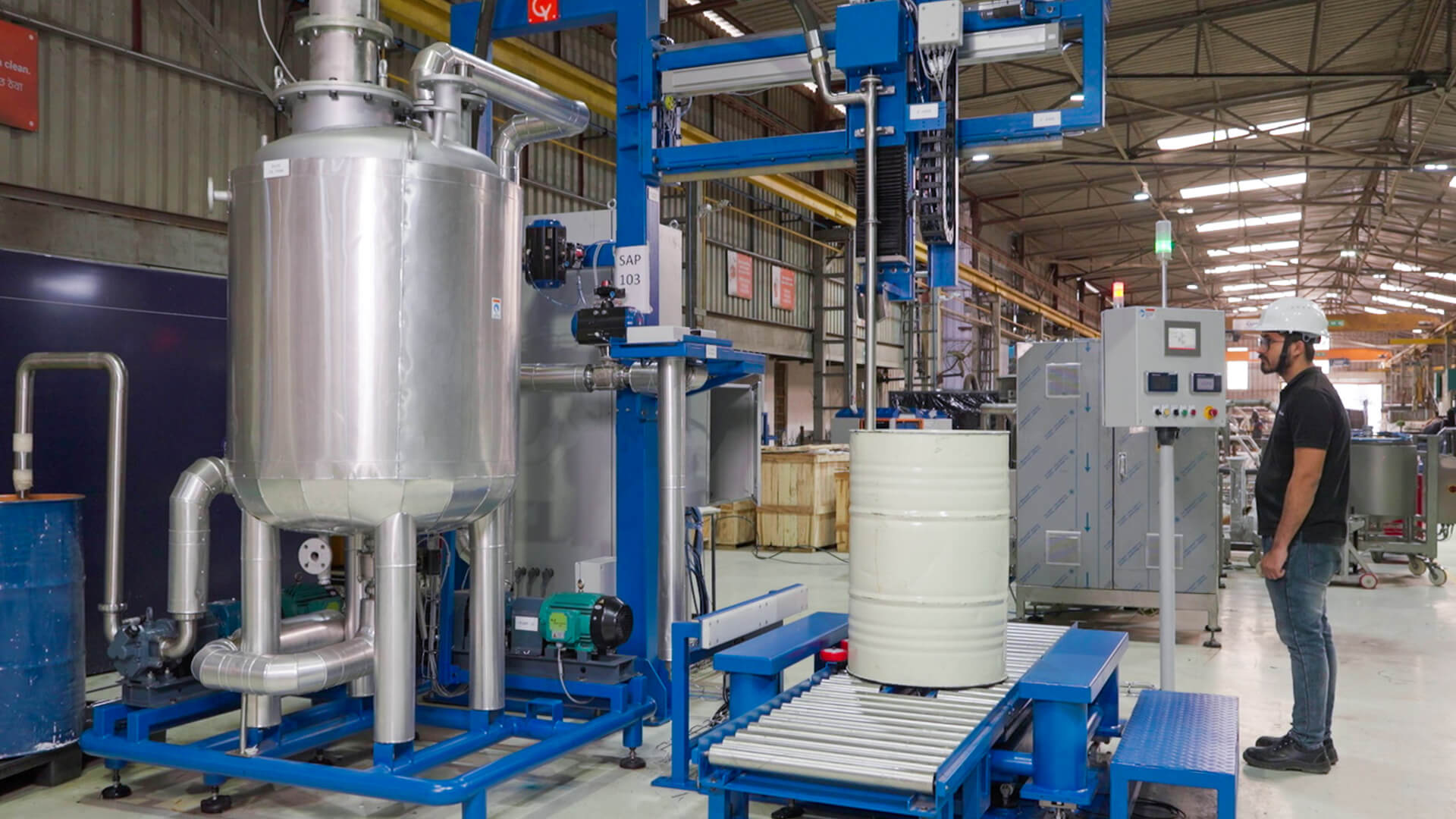

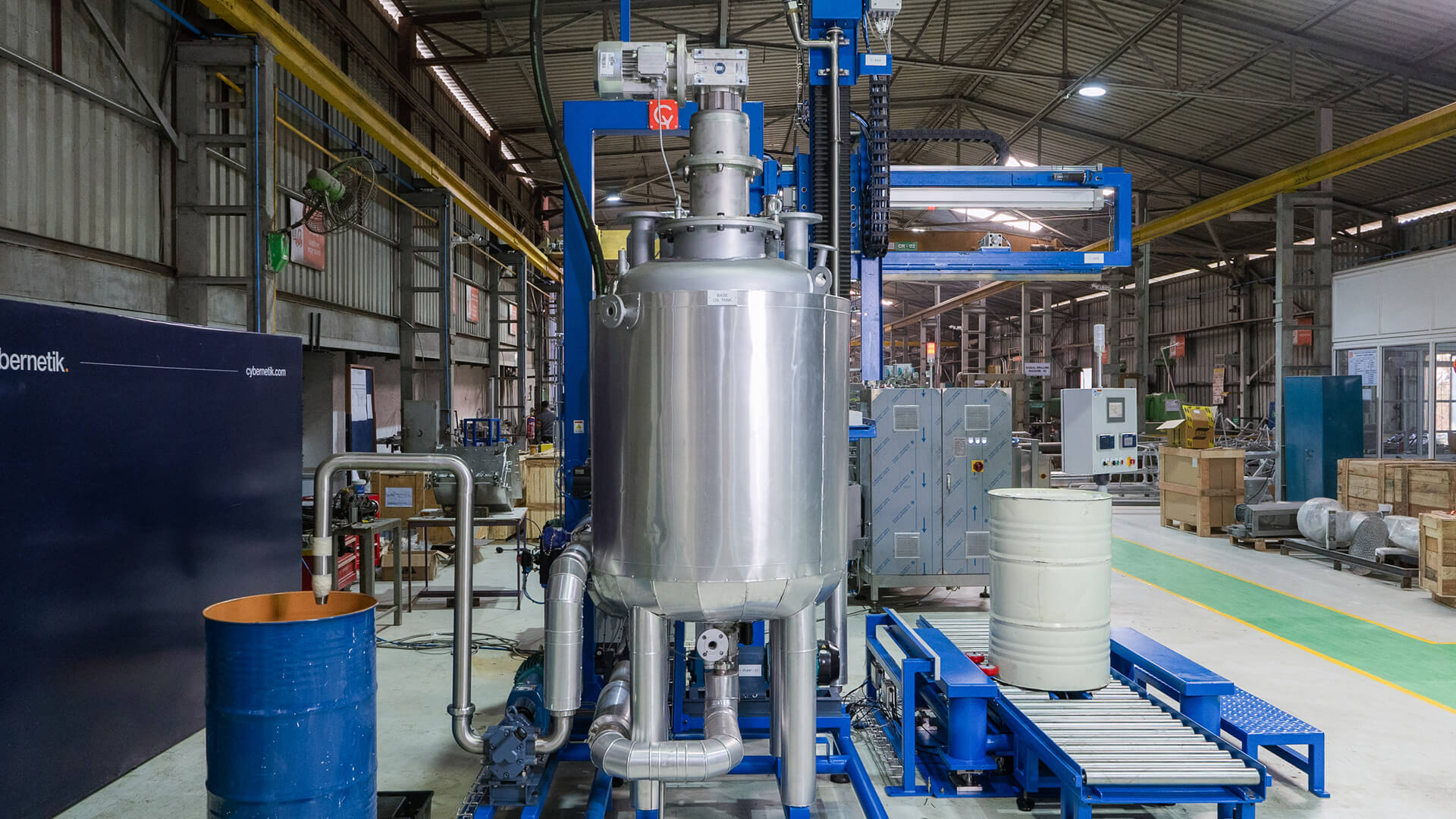

Cybernetik’s Drum & IBC Decanting System is designed for maximum decantation and accuracy while minimizing wastage and residual fluid. Flush systems ensure zero cross contamination of additives, and facilitate immediate reuse of drums. Plus, the system is customizable that allows recipe selection for as-required mixing in multiple base fluid systems.
Cybernetik Advantages

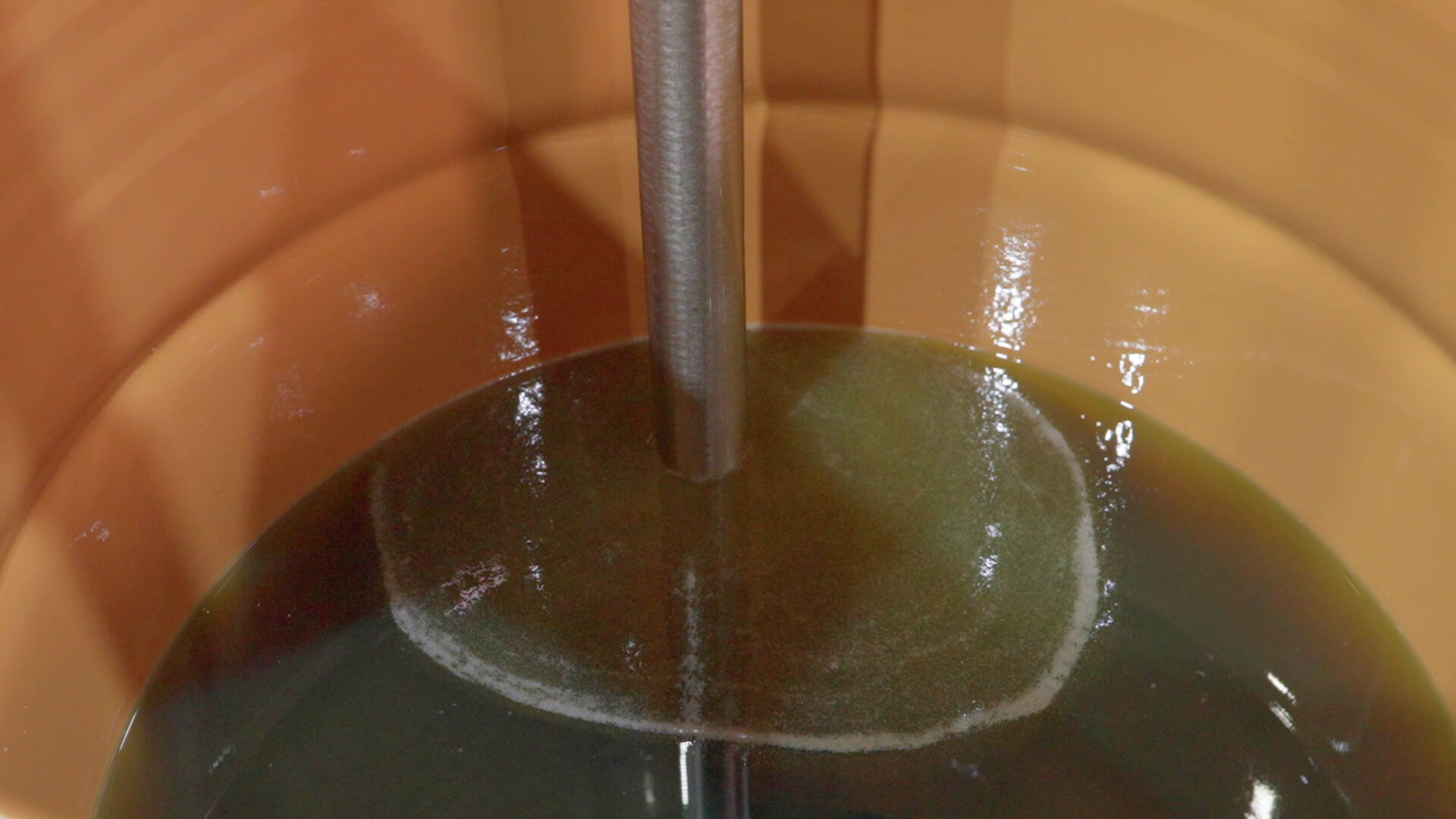

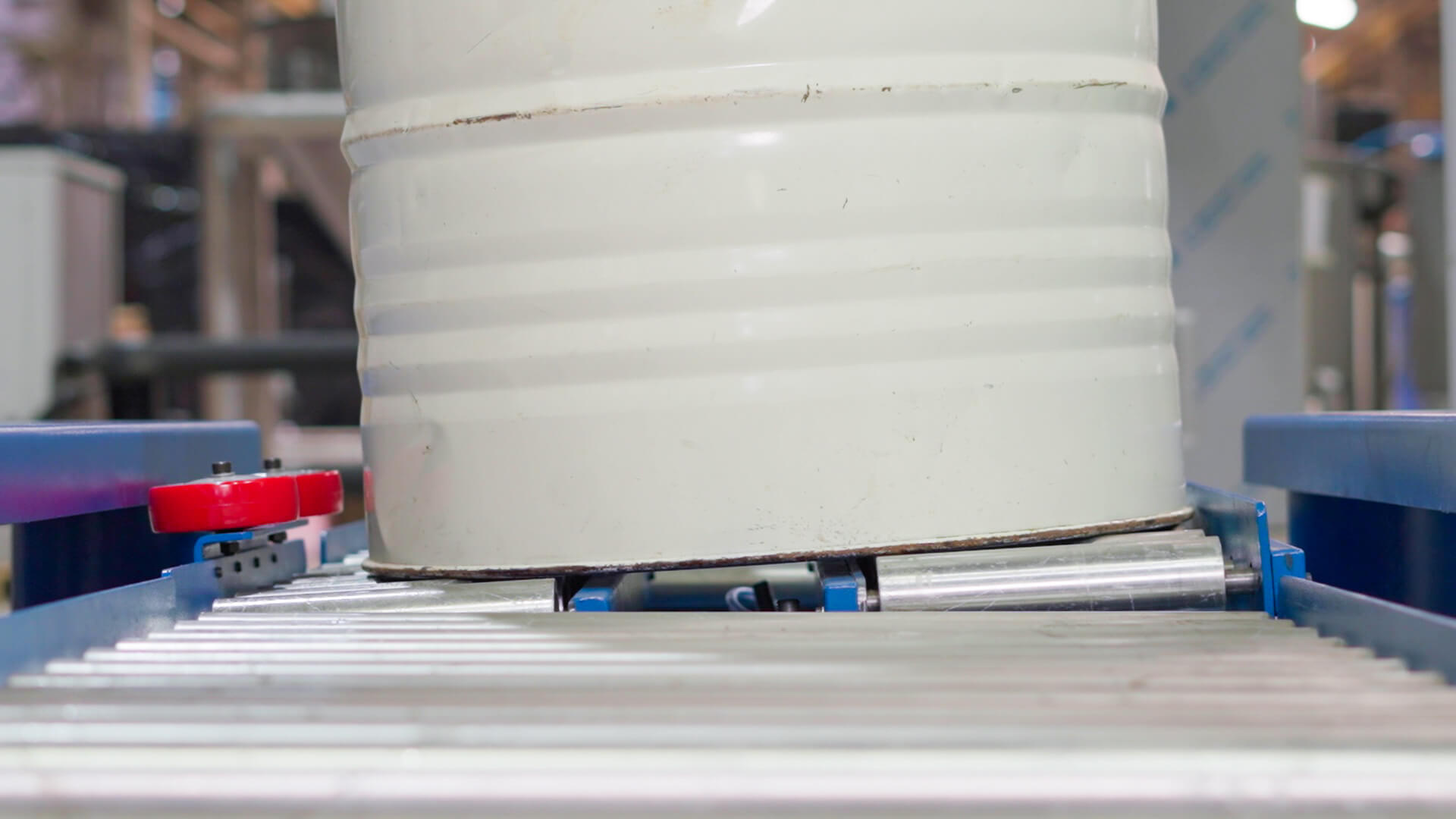

- Accuracy: Servo-controlled lance moves deeper inside drum / IBC in stages, reference system for precise drum / IBC positioning.
- Utilization: Drum / IBC tilted for maximum decantation, discharges of drum / IBC flush used in final mixture.

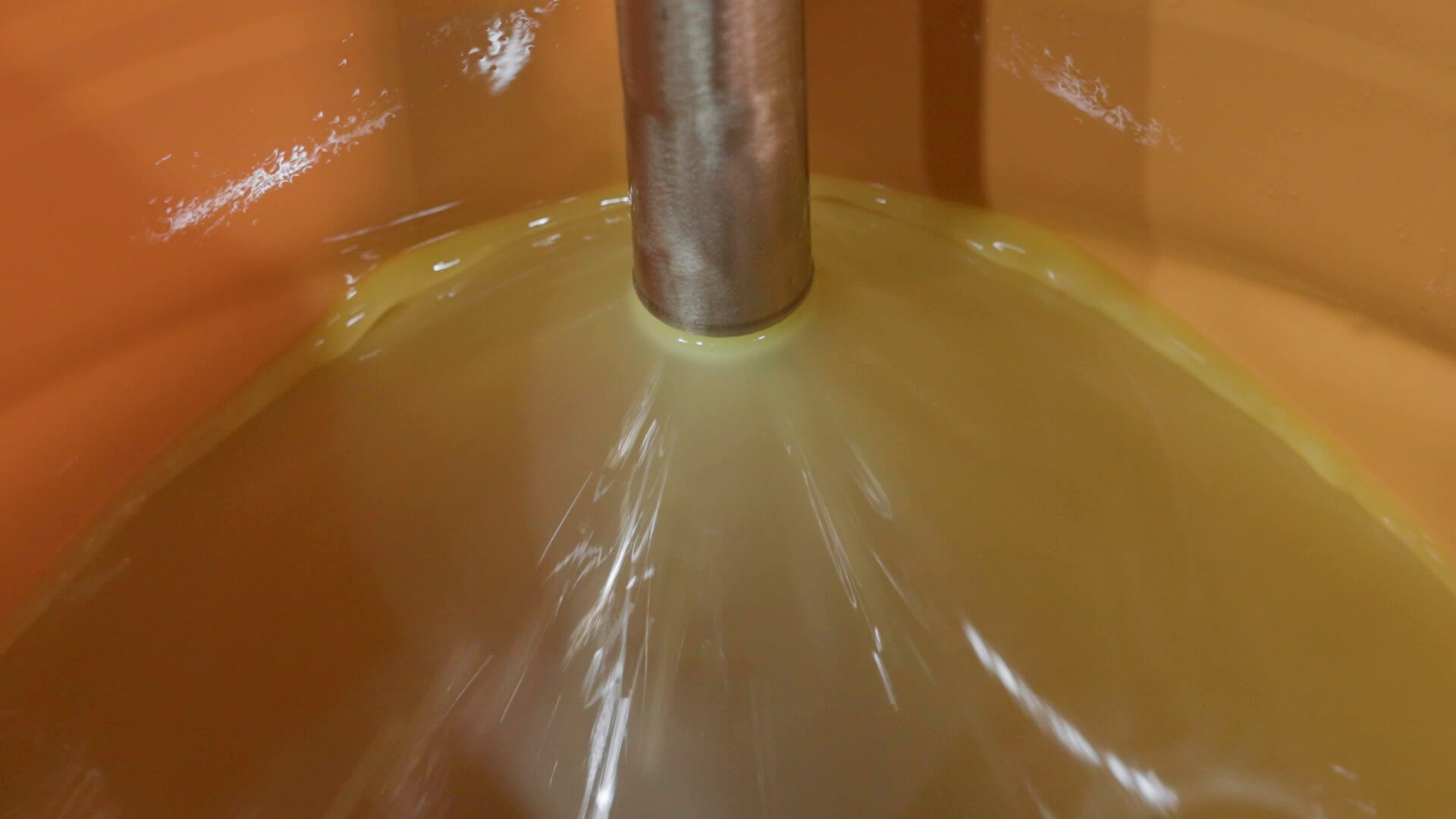

- Purity: Lance flush by heated base fluid / sanitizer / hot water prevents additive cross contamination; base fluid flush for drum / IBC via lance.
- Control: Base fluid temperature uniformized via agitation and recirculation.

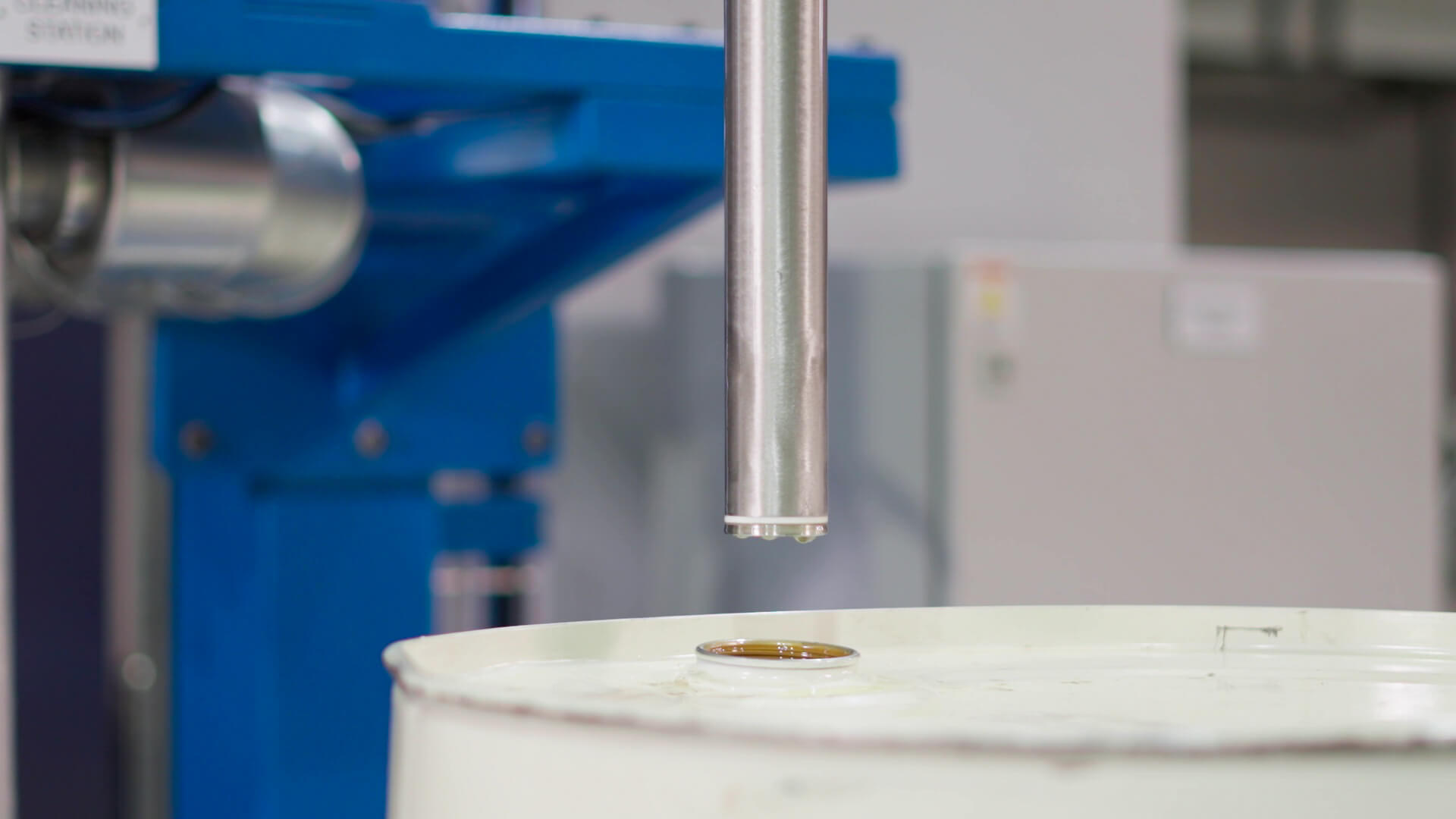

- Safety: Lance retracts smoothly on touching drum / IBC surface.
- Hygiene: Coarse / fine valve prevents drips from lance.
Additional Features
- Multiple base fluid system for complex / variant mixtures.
- Steam / electrical / thermic fluid heating options for base fluid.
- Hot water / sanitizer CIP system for lance.
- Volume / mass based monitoring.
Products Handled
Thinners
Engine Oils
Kerosene
Coolant Oils
Petrochemicals
Lubrication Oils
Petrol / Gasoline
Liquid Chemicals
Additives
Diesel
Drum & IBC
Decanting System
Brochure
Download a detailed brochure of our
Drum & IBC Decanting
System
Industries
Petroleum
Paints & Coatings
Industrial Lubricants
Emulsions
.jpg)
Models
| Code |
Capacity (m3/hr) |
Viscosity (cSt) |
Tolerance (mass) |
Residual Fluid (volume) |
MOC |
|---|---|---|---|---|---|
| REFE-DIDE | 0.5 | 2500 | Up to 0.5% | Up to 2% | Contact: SS304/316 |
| 1 | 3000 |
Non-Contact: MS Powder Coated |
|||
| 1.5 | 3500 | ||||
| 2 | 4000 | ||||
| 2.5 | 5000 |
