Cybernetik’s Bag Depalletizer & Slitter System is a high-productivity solution with inbuilt features for accuracy and safety. Automation minimizes the bacterial load, an essential feature for food and pharmaceutical applications.
Cybernetik Advantages
- Customizable: Vision System guided Rotate-able Grippers adjust automatically to bag matrix pattern for as-required depalletizing
- Rapid Operations: Multiple depalletizer lines for higher speed
- Hygiene: Dust Collector maintains dust-free ambience
- Accuracy: Poka Yoke keeps operations error free
- Operational Continuity: Bag Compactor removes empty bags while Rotary Tables guide away empty pallets
- Safety: Safety Curtain switches off the setup when human presence is spotted in Safety Cage
Products Handled
Bags
Sacks
Food
Chemicals
Powders
Bulk Solids
Pharmaceuticals
Automatic
Robotic Bag
Depalletizer
Brochure
Download a detailed brochure of our
Automatic Robotic Bag
Depalletizer
Industries
Pharmaceuticals
Support to your build your business case, every step of the way.
Chemicals
Support to your build your business case, every step of the way.
Manufacturing
Support to your build your business case, every step of the way.

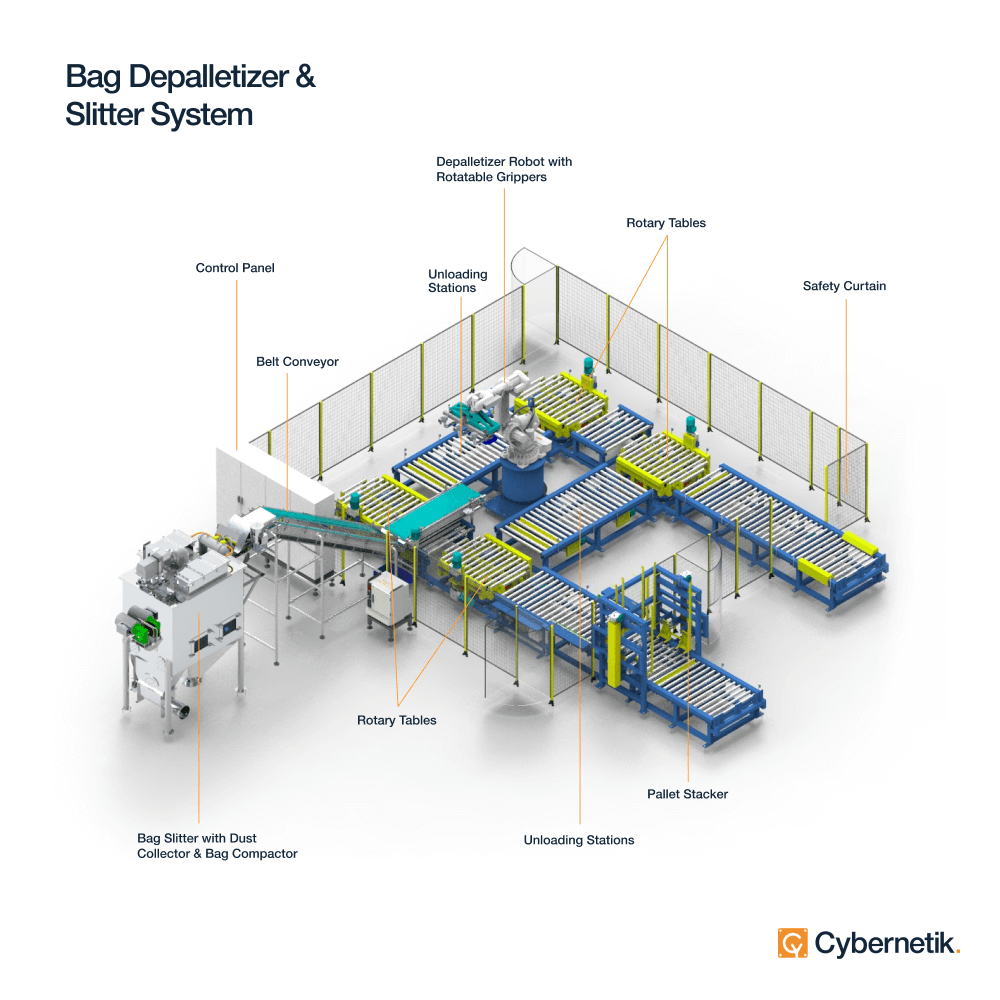

Operational Sequence:
To place the loaded Pallet on the Roller Conveyor at the single Entry Station upstream of the Safety Curtain.
Ensures correct placement of the loaded Pallet.
Allows the system to operate only if no humans are present inside the Safety Cage
Direct the loaded Pallet to one of the two Unloading Stations, one on each side of the Depalletizer Robot.
Picks up Bags from the Pallet and places them on the Belt Conveyor. Rotate-able Grippers of the Robot allow it to pick different number of Bags during each iteration to adjust to the Pallet Matrix.
Transfers Bags to the Slitter section.
Slits the Bags and directs the material and empty Bags in different directions. Bag Compactor removes empty Bags from the system.
Direct empty Pallets from both Unloading Stations to the Pallet Stacker.
The empty Pallet stack via Forklift Truck.
